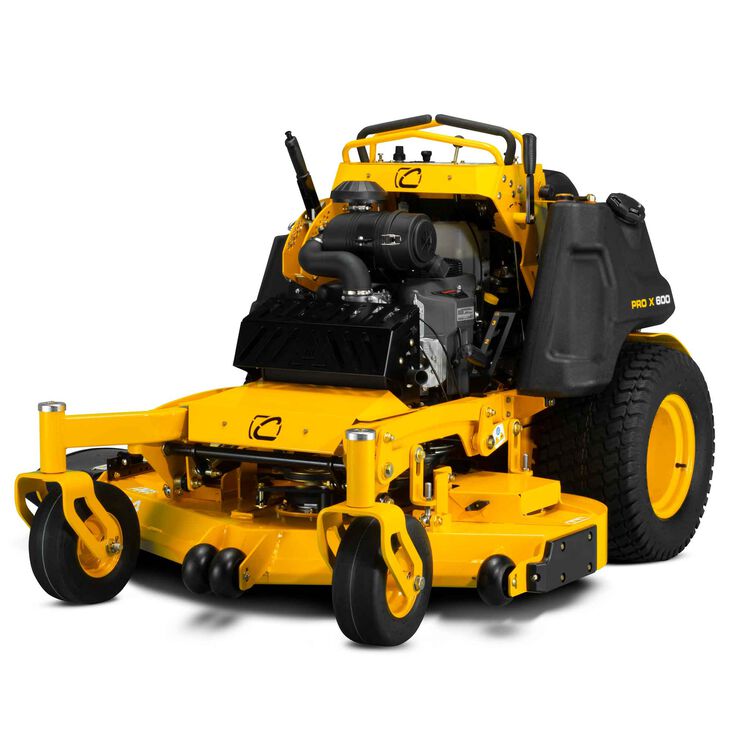

Name: Cub Cadet PRO X 654 Stand-On Mower
Brand: Cub Cadet
SKU: 53FI8CSAA50
Price: 21129.0 CAD
Availability: InStock

$21,129.00

Available To Order
Available To Order

Price does not include PDI, Factory Freight, or Accessories

The Cub Cadet® PRO X 654 54-in. 25.5 HP* Commercial Stand-On Lawn Mower features a fully fabricated 10-gauge steel commercial deck shell with top, bottom and side reinforcements. Standard 24-in. tires are designed to give you ground clearance to easily hop on curbs. A large, fully adjustable suspension platform is engineered to allow you to glide comfortably through tough terrains.

Commercial-grade 25.5 hp Kawasaki® FX801V (852cc) engine
A fully fabricated 54-inch 10-gauge steel commercial deck shell with top bottom and side reinforcements plus standard 24" tires give you more ground clearance to easily hop on curbs.
A large, fully adjustable suspension platform allows you to adjust tension and glide comfortably through tough terrains.
High-performance commercial Hydro-Gear® PK 12cc pumps & Parker® TL 240cc wheel motors deliver quick response to the drive wheels and smooth control for cutting speeds up to 10 mph.

Engine

Engine Brand Kawasaki®
Engine Model FX Series
Engine Model Number 801V
Engine Displacement 852cc
Engine Output 25.5HP
Starter Type Electronic
Fuel Tank Capacity 7.5 gal. US (28.4 L)
Cylinders Twin
Engine Start Ignition Key
Engine Oil Capacity 2.0 qt. US (1.89 L)
Lubrication Fully pressurized
Charging System 15 amp regulated
Fuel Gauge No
Choke Separate Choke
Air Filter High Density
Oil Filter Yes
Fuel Delivery Carburetor

Drive System

Transmission 12cc Hydro-Gear® pumps / 240cc Parker® wheel motors
Forward Speed 10 mph / 16 km/h
Reverse Speed 5 mph / 8 km/

Cutting Deck

Deck Cutting Width 54 in
Deck Material 10-gauge steel
Deck Engagement (PTO) Electronic with quick reset
Deck Construction 10 ga shell w/ 7 ga top & bottom reinforcement
Spindle Construction HD 8" aluminum housing, 35mm double-row sealed ball bearings, 1-3/8" through-shaft and maintenance-free design
Blade(s) Three 19" long high-lift Marbain blades, 1-1/2" of blade overlap
Deck Lift Hand lever adjusting spring lift, pin selector for height
Cutting Height Range 1'' - 4.5''
Anti-Scalping 2 front deck gauge wheels

Chassis

Frame 2" x 3" full-length tube frame
Front Axle 2" x 3" tube construction
Front Caster Mount 3/8" thick steel
Suspension Hand lever adjust, 3-position spring suspension foot platform

Controls

Cruise Control NA
Brakes Hand lever control / external band
Steering Control Lap Bar Steering Wheel Control

Wheels

Rear Tires 24"x12"-12"
Front Tires 13x5-6" Reliance Run Flat carlisle

Dimensions

Weight (approx.) 1080 lbs

Additional Specifications

Hour Meter Crew Boss
Model Number 53FI8CSAA50

Warranty

Commercial Warranty 3-Year / No Hour Limit Warranty and/or 5-Year 1,200 Hour

Disclaimers

Specifications
Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Horsepower
*As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.

Manuals

Model	Manual	Form Number
53FI8CSAA50	MANL:OPER:53A:STANDING:RIDER
	MANL:OPER:53A:STANDING:RIDER	769-27008	Download
