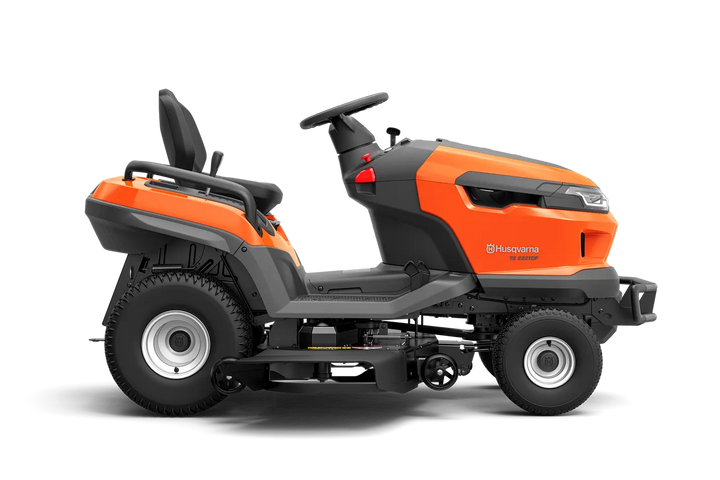

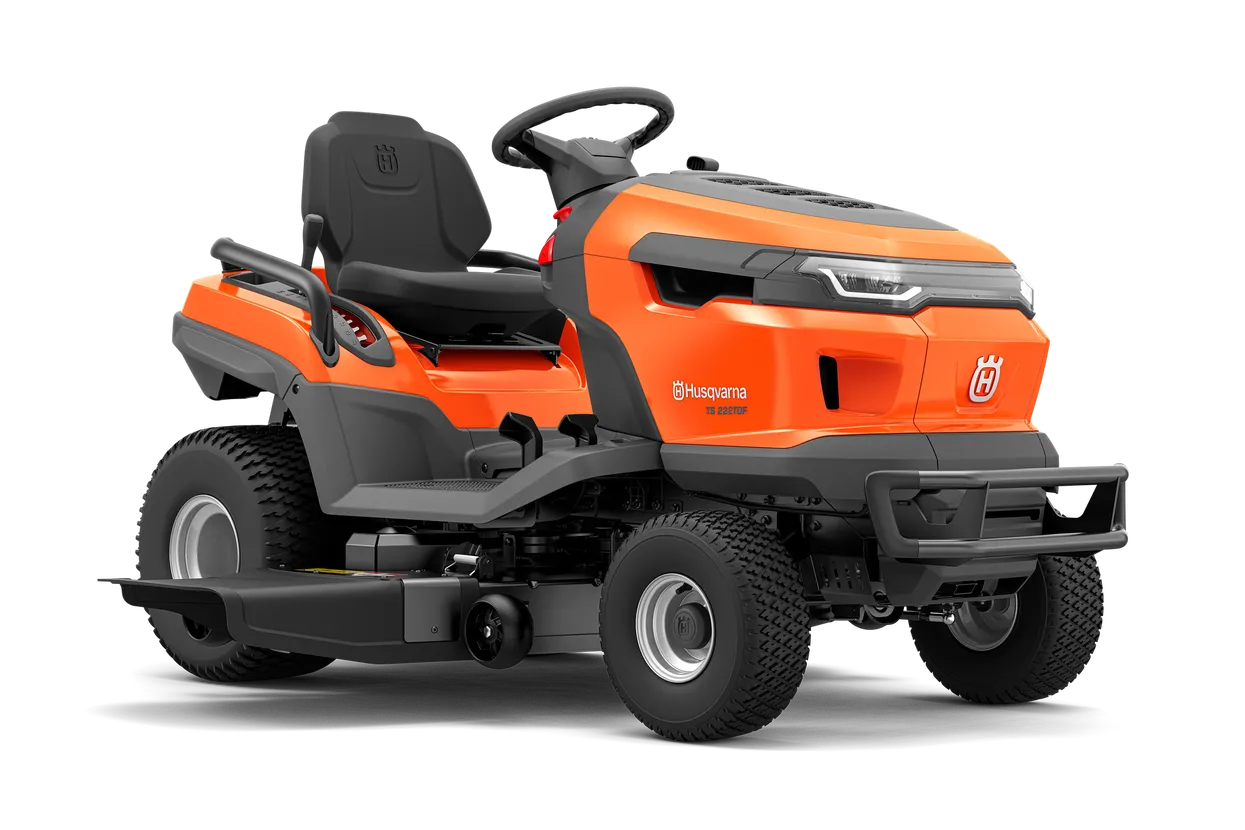

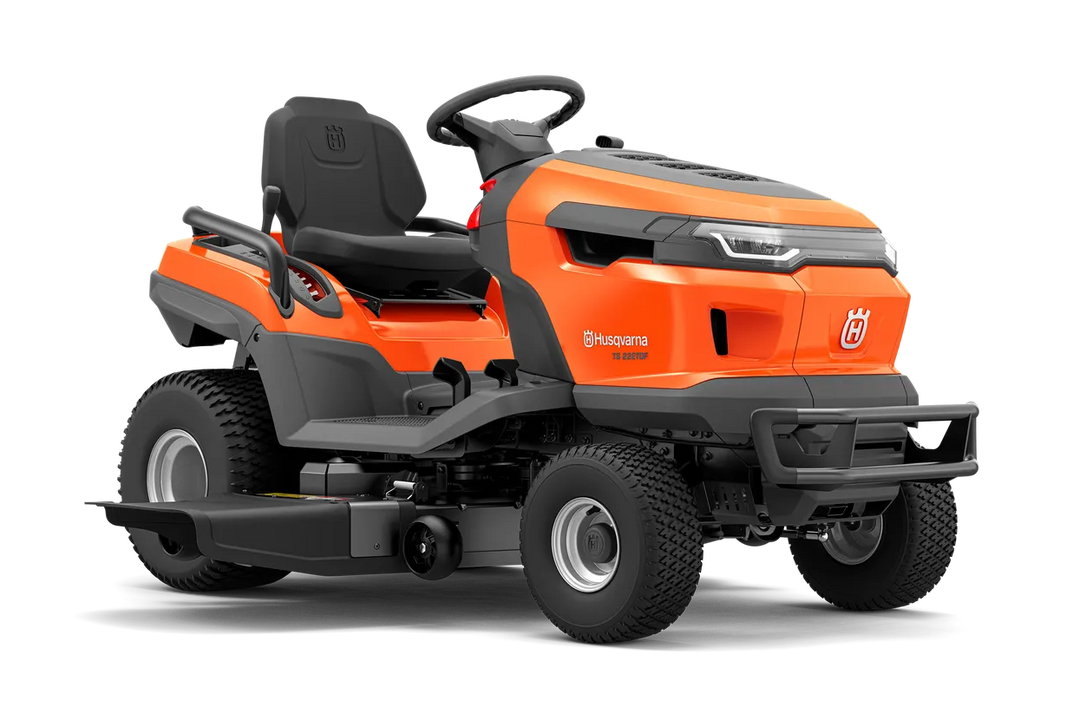

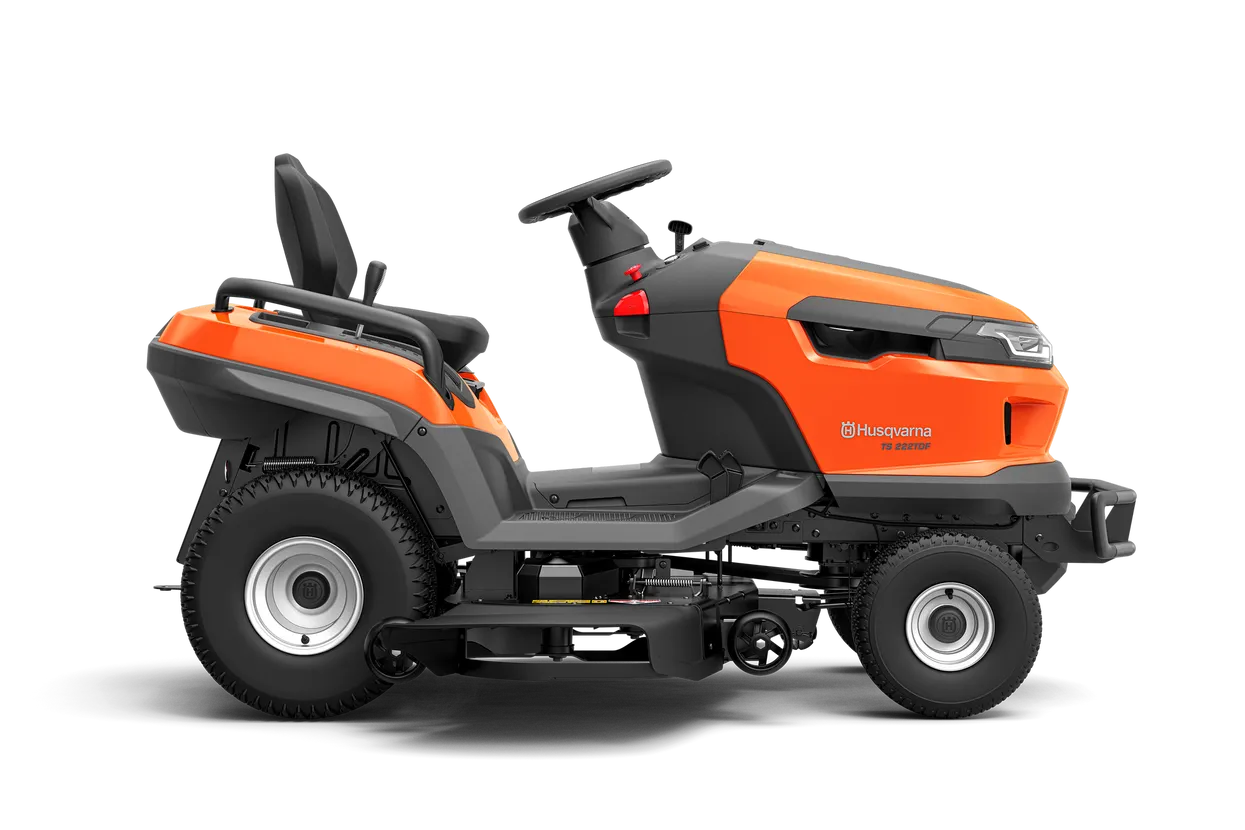

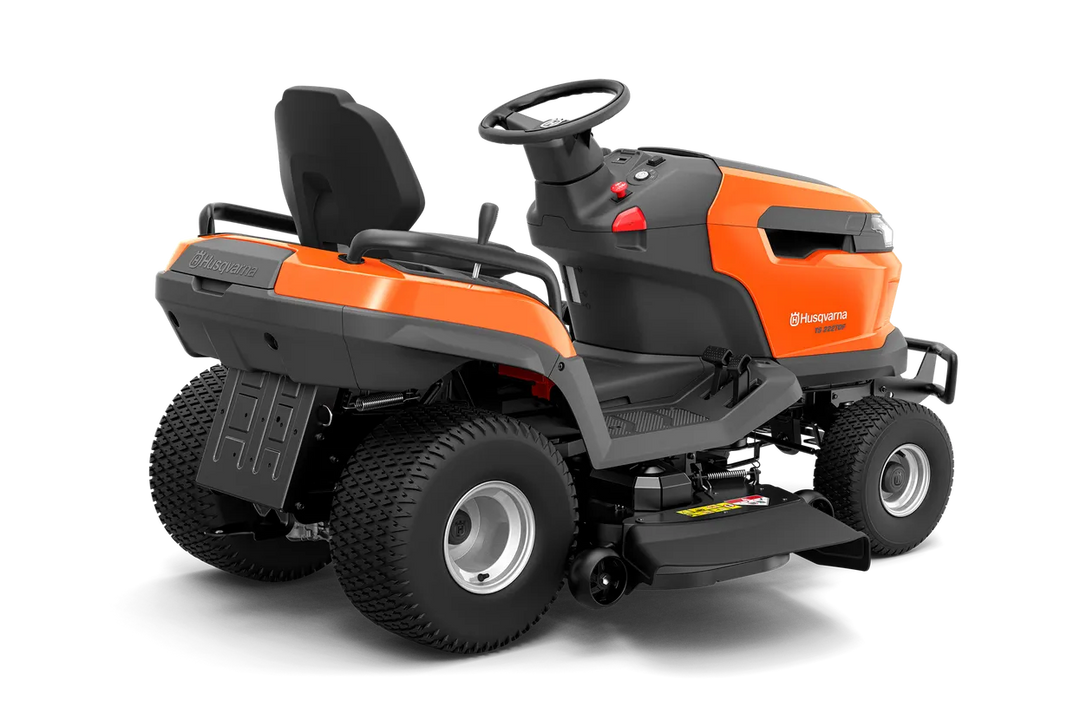

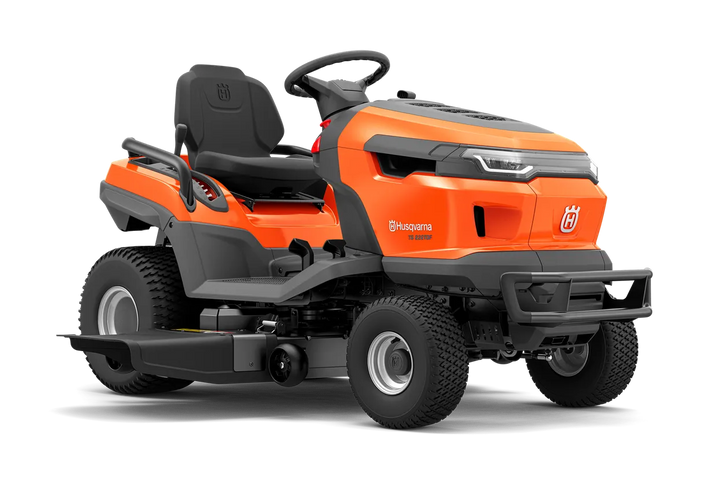

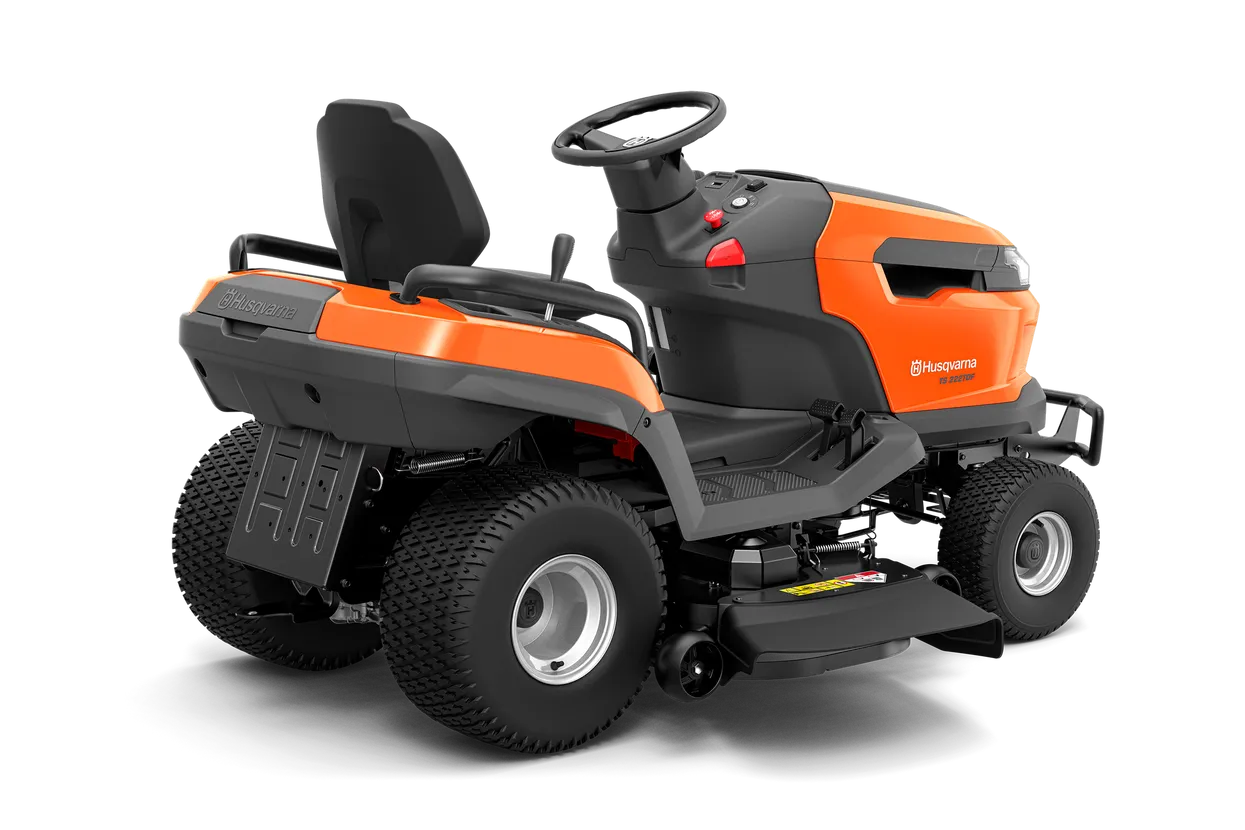

TS 222TDF

High-performance mowing with 122 cm Clear Cut™ cutting deck

Husqvarna TS 222TDF riding mowers are designed to give you control, comfort, and confidence. These premium mowers feature ClearCut™ fabricated decks for superior cutting performance. And the automatic locking differential engages when you need it to instantly provide more traction. No matter the job, these tractors are ready to perform.

26.3 hp 48 in Petrol
Engine Power (As rated by the engine manufacturer) Cutting width Power/fuel type



Features

Automatic locking differential
The standard automatic locking differential senses wheel slip and locks the rear wheels for increased traction.

ClearCut™ Fabricated Deck
Specially-designed 108cm deck built for superior cutting performance whether discharging, collecting or mulching.

Convenient storage compartments
One open storage compartment on the left and one at the back with a lid for easy access to equipment during mowing.

Durable front axles
Robust design with cast iron front axles for reliable and durable performance.

Cruise Control
Comfortable operation with cruise control so that the foot can rest when mowing large open areas.

Ergonomic controls
All controls are ergonomically placed and easy to reach from the driver's seat. It provides high comfort and minimizes the effort, especially during long working periods.

Spring-assisted cutting height adjustment
Easily accessible cutting height adjustment for improved ergonomics. The spring-assisted cutting height adjustment makes setting the desired height even easier.

Soft grip steering wheel
Soft grip steering wheel for a pleasant user experience.

LED Headlights
Equipped with LED headlights for higher visibility from the driver’s position when operating in dark conditions.

Side handles
The side handles can be used when getting on and off, or to push the product into the garage or other spaces.

Dual pedal drive
Dual pedal drive for better drive control and easy, intuitive operation

Electric engagement of cutting blades
Easy engagement of cutting blades; simply pull the switch on the control panel.

Easy seat adjustment
The driver's seat can be easily adjusted by sliding it to the desired position without you having to get off the product.

Reinforced cutting deck
The steel reinforcement bars on the edges of the cutting deck gives improved durability.

Bumper
Protects the front of the tractor effectively.

ROS in start key
ROS is activated with the start key for quick access to reverse mowing, and to minimise the risk of the function being used unintentionally.
Cutting deck
Cutting width 48 in
Cutting height max 4 in
Cutting height min 1 in
Nose roller Yes
Anti-scalp wheels 4



Drive system
Drive method Dual pedal-operation
Speed forward max 6.2 mph
Speed reverse max 3.7 mph
Engine
Cylinder displacement 46.6 cu.inch
Motor/engine manufacturer Husqvarna
Engine name HV 764AE

Engine Power (As rated by the engine manufacturer)

 26.3 hp / 19.6 kW
Cylinders 2
Power/fuel type Petrol
Oil Filter Yes
Fuel tank volume 3.43 gal (US)
Equipment
Seat material PU
Seat Type Comfort
Front-End Protection Brush Guard Style Bumper
Hour meter type Digital
Seat back height Medium
Steering wheel type Ergonomic - soft grip
Collector No
Transmission
Transmission type Hydrostatic with Automatic Differential Lock
Transmission manufacturer Tuff Torq
Emission
Exhaust emissions (CO₂ EU V)1 806 g/kWh

Disclaimer:

1Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.

Services

Financing for your new Husqvarna equipment is fast, flexible and convenient. A variety of programs for both commercial accounts and homeowners are available. Financing programs are offered by the below, independent companies. *Availability is subject to credit approval, and other criteria, qualifications and restrictions established by these companies may apply. Visit your local, independent dealer for additional details and assistance in selecting the plan that’s right for you. Dealer Processing Fee: $149.99

View Husqvarna Financing Options

Owner Support
Manuals, handbooks, spare parts, guides, and related information for TS 222TDF can be found in the product support:
Product support for TS 222TDF
