MX350AE

$83,810.00
/
  • Available To Order
  • Available To Order
  • Price does not include PDI, Factory Freight, or Accessories

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

KIOTI MX350AE Mini Excavator

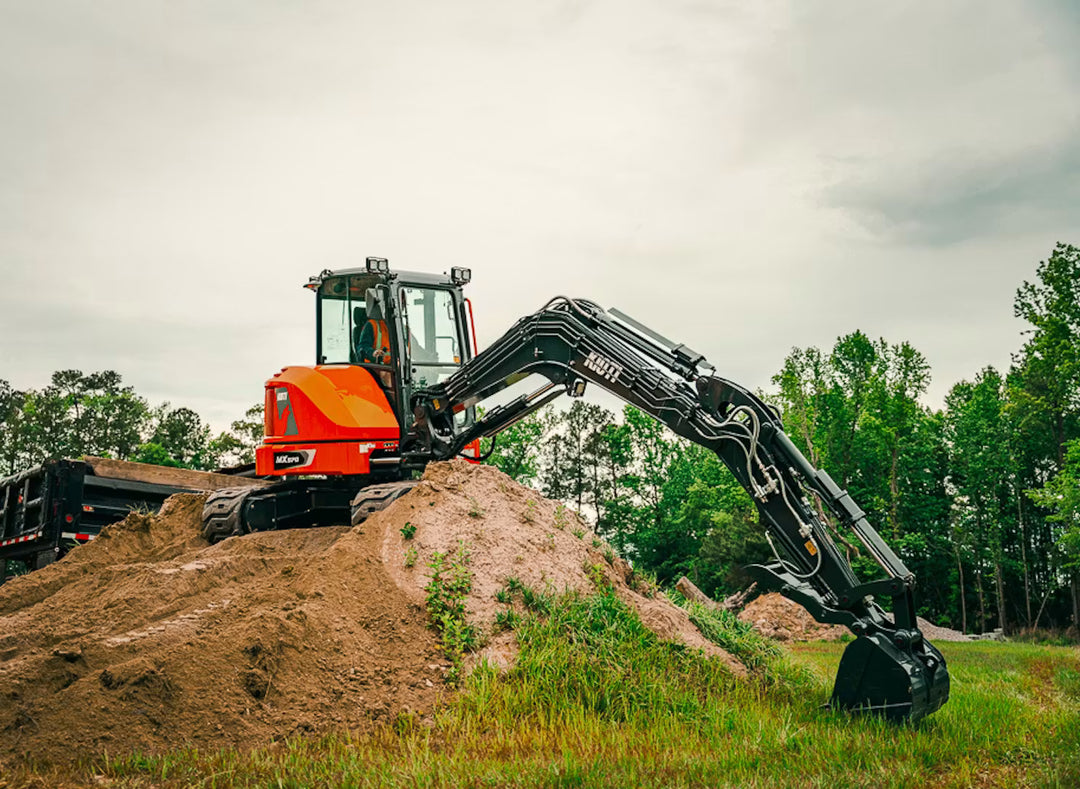

The 24.5-horsepower, 3.5 ton MX350E mini excavator comes with an extended arm that provides greater digging depth and reach. It is fully equipped and job-ready from day one, engineered for durability, efficiency, and productivity—delivering exceptional value through standard features and immediate compact construction jobsite readiness.

Everything you want.
Without all the things you don’t.

Features

Mechanical Quick Coupler
Enables fast, efficient attachment changes to keep jobs moving with minimal downtime.

Hydraulic Thumb
Provides enhanced material handling capability for lifting, gripping, and placing debris, rocks, and logs with confidence.

Variable Piston Pump
Delivers smooth, consistent hydraulic power for precise control of the boom, arm, and attachments.

Suspension Seating
Delivers a smoother, more comfortable ride by absorbing bumps and vibrations.

Heavy Duty Angle Blade
Delivers added versatility with adjustable angling for efficient backfilling, grading, and material control.

2-Speed Drive
Allows operators to switch between high and low travel speeds to match jobsite demands.

Zero & Reduced Tail Wing Designs
Offers improved maneuverability in tight spaces by minimizing rear swing.
Engine
Engine Model 3TNV88F
Engine Manufacturer Yanmar
Engine Power 21.50 hp (16 kW)
Engine Displacement 100.20 cu. in. (1,642 cc)
RPM 1 rpm
Fuel Type Diesel
Aspiration Naturally Aspirated
Fuel Capacity 14.50 gal (55 L)
Oil Capacity 1.80 gal (6.70 L)
Coolant Capacity 1.90 gal (7 L)
Radiator Coolant Capacity 33 gal (44 L)


Hydraulics
  • Load-sensing, variable piston pump
  • 26.2 GPM (99.0 LPM)
  • 3,669 psi (25.3 Mpa)
  • 15.9 GPM (60 LPM) flow for AUX 1
  • 2,611 psi (18 Mpa) AUX 1 pressure
  • 7.9 GPM (30 LPM) flow for AUX 2
  • 2,321 psi (16 Mpa) AUX 2 pressure
Operating Specs
  • 15.11 ft (4,843 mm) max. digging height
  • 11.3 ft (3,440 mm) max. digging depth
  • 10 RPM swing speed
  • 70 degrees left / 50 degrees right boom swing angle
Dimensions
Wheight 9,105 lbs (4,130 kg)
Length 15.11 ft (4,860 mm)
Width 5.7 ft (1,700 mm)
Height 8.2 ft (2,500 mm)
Clearance 10 in (258 mm)
Track Length 6.11 ft (2,100 mm)
Track Width 12 in (300 mm)
