Designed for those who demand premier performance in a compact tractor. KIOTI's most powerful compact tractors conquer the toughest terrain and tasks with ease, while remaining nimble to navigate tight spaces.
Starting At
$33,460.00
/
MSRP does not include: Loader, Accessories, Factory Freight And PDI
  • Available To Order
  • Available To Order

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

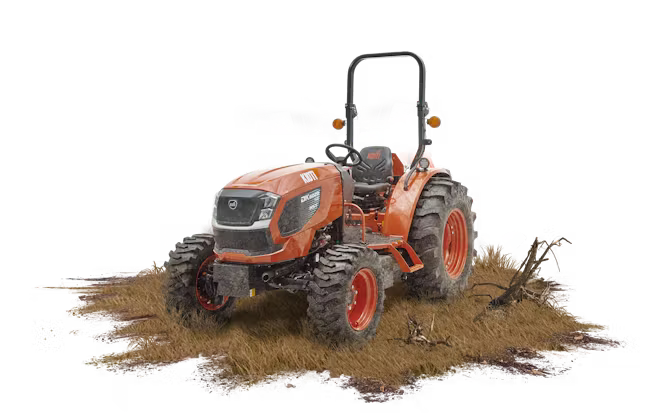

DK Series Compact Tractors

Designed for those who demand premier performance in a compact tractor. KIOTI's most powerful compact tractors conquer the toughest terrain and tasks with ease, while remaining nimble to navigate tight spaces.

Everything you want. Without all the things you don't.

DK4520 45-horsepower compact tractor designed for homeowners, hobby farmers, and small scale ranchers.

Convenience Features
A deluxe suspension seat, PTO cruise, high ground clearance, power steering, tilt steering wheel, center marker, projection light for better night vision, and a one piece engine panel to check service points with ease.

Safety
Wet disc brakes, a sturdy ROPS or Cab, and a secure seatbelt keep you safe. Headlights, safety lights, and a rear work light lets you see attachments and drawbars clearly, even in low-light conditions.

Attractive Options
Dress up your tractor with impressive options. Swap standard tires for turf, industrial, or R14 tires. Add a fuel heater kit, 2nd remote hydraulic valve, or bluetooth speaker kit for comfort and convenience.

Rugged Performance
Dependable, liquid-cooled KIOTI 3-cylinder diesel engine hums with fuel efficiency, ready to take on demanding jobs all day long. Engage the rear differential lock for unflinching traction, then command implements with the push-button hydraulic PTO.
Model 3HT-TM4B
Engine Manufacturer KIOTI
Power 44.90 hp (33.50 kW)
Displacement 111.40 cu. in. (1,826 cc)
RPM 2,600 rpm
Fuel Type Diesel
Aspiration Natural
Fuel Capacity 11.90 gal (45 L)



Transmission Manual: Synchro Shuttle
Shuttle Dry Single Stage
Main Gear Dry Single Stage
Travel Speeds Forward 8
Travel Speeds Reverse 8
Travel Speeds Minimum Speed 1.29 mph (2.08 km/h)
Travel Speeds Maximum Speed 16.70 mph (26.90 km/h)
Travel Speeds Min Reverse Speed 1.26 mph (2.03 km/h)
Travel Speeds Max Reverse Speed 16.30 mph (26.20 km/h)
PTO Type Independent
PTO Power 38.90 hp (29 kW)
Rear Speed 540 rpm
Mid Speed 2,000 rpm
Brakes Wet Multi Disc
Clutch Dry Single Stage
Steering Hydraulic Power Steering
Pump Gear
Pump Capacity 14.70 gpm (55.10 lpm)
Lift Capacity 2,716 lb (1,232 kg)
Type Three Point
Category Category 1
Control Type Position
Lift Capacity 2,716 lb (1,232 kg)
Length with Hitch 124.30 in (3,157 mm)
Height 96.80 in (2,458 mm)
Width 62.80 in (1,596 mm)
Ground Clearance 14.50 in (368 mm)
Front Tread 49.40 in (1,254 mm)
Rear Tread 49.30 in (1,251 mm)
Turning Radius 8.56 ft (2.60 m)
Weight 3,373 lb (1,530 kg)
Wheelbase 71.30 in (1,810 mm)





These tires were made for working. And that’s just what they’ll do.

Agricultural

Front: 8-16
Rear: 13.6-24

Industrial

Front: 10-16.6
Rear: 14.9-24

R14

Front: 10-16.5
Rear: 320/85R24

Turf

Front: 29-12.5-15
Rear: 21.5-16.1

Attachments & Implements

Everything you need to get anything done.

KIOTI

Backhoes

KIOTI backhoes deliver trenching up to 94” deep with a bucket dig force of up to 3,748 pounds. The backhoes feature sub-frame mounting, self-contained hydraulics, two-lever hydraulic controls, hydraulic stabilizers, transport lock and a variety of buckets. Now go dig.
Learn More
KIOTI

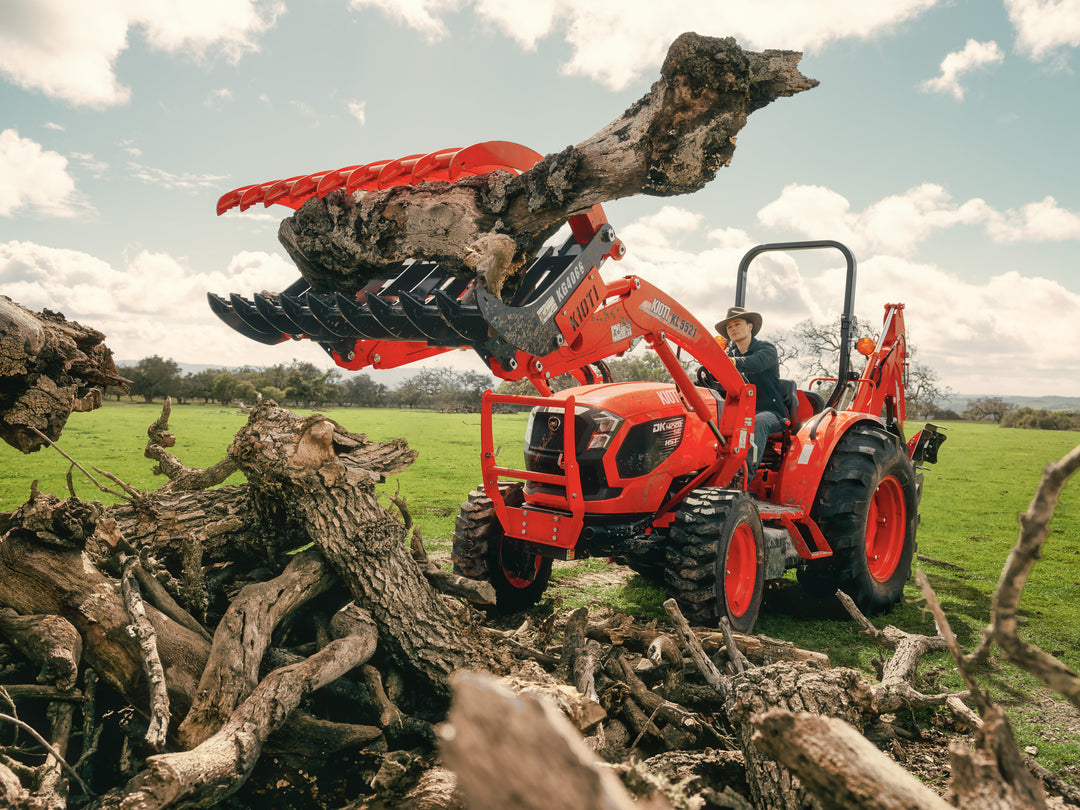

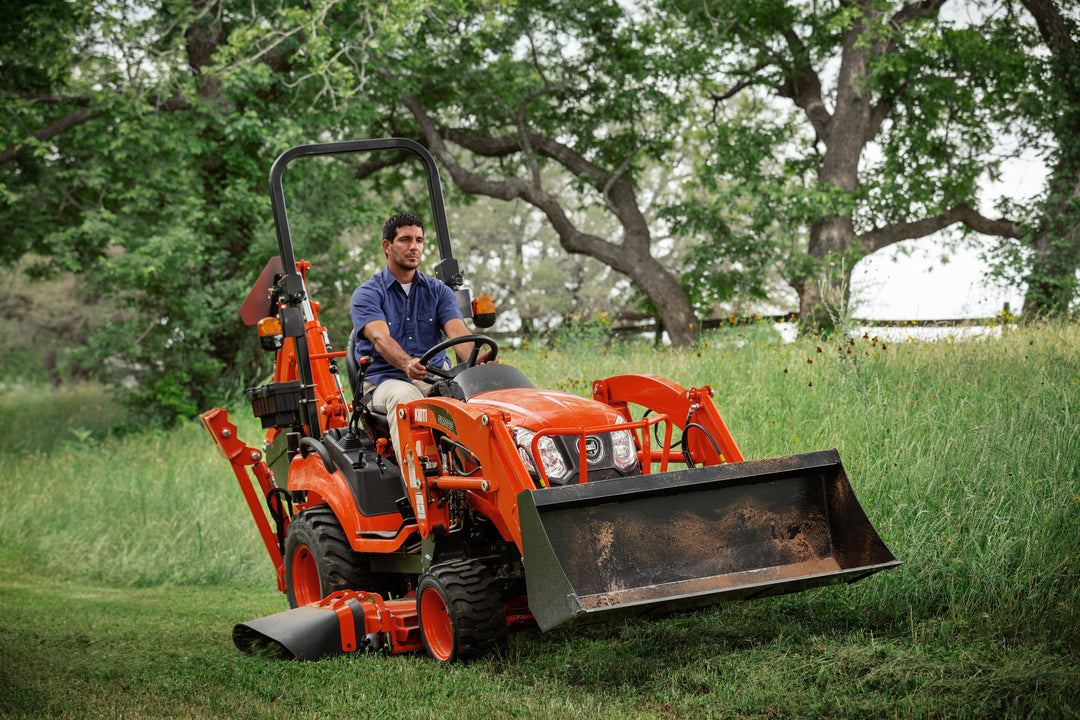

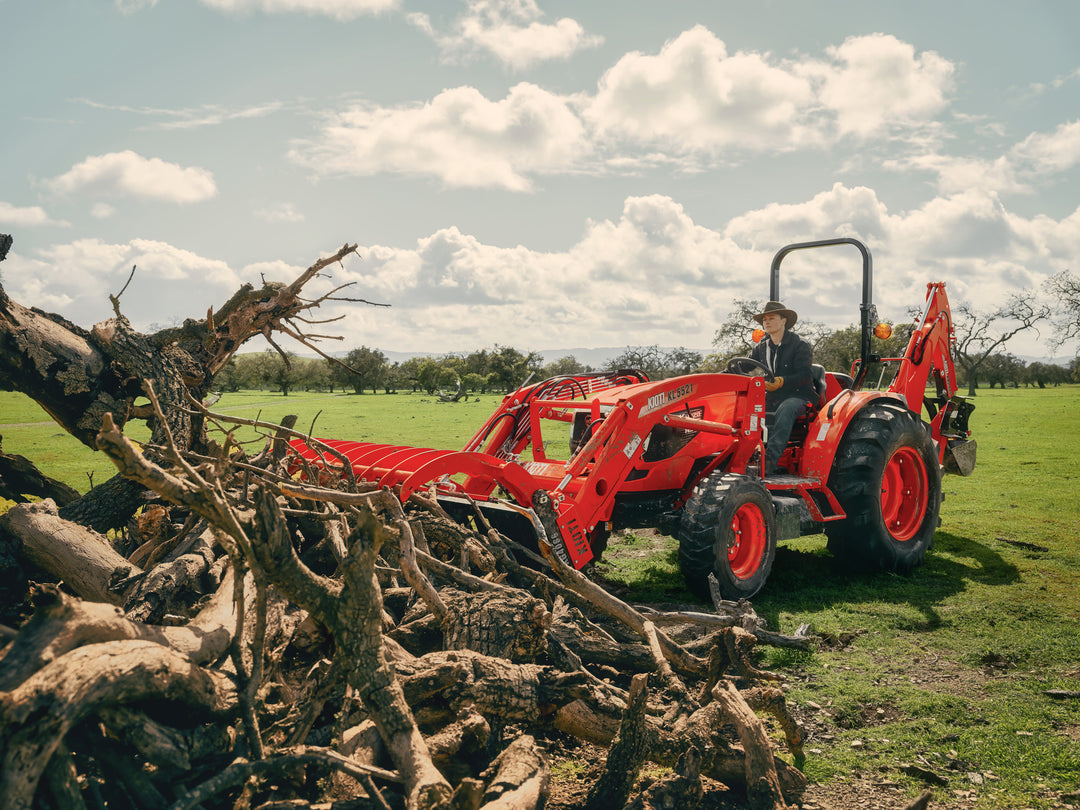

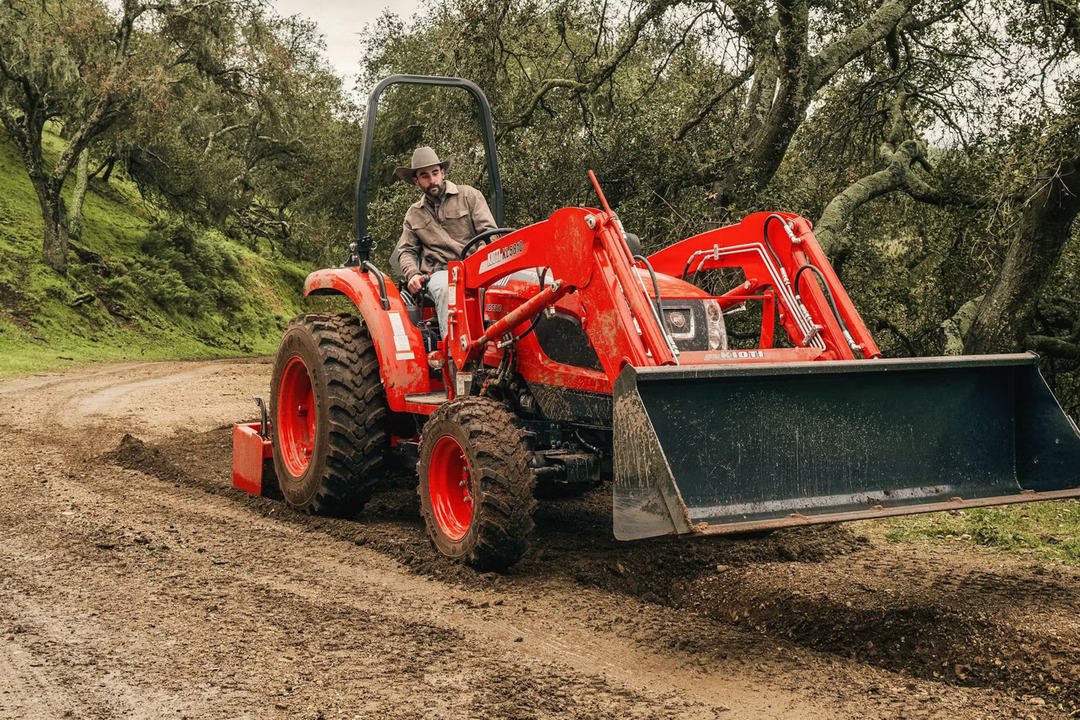

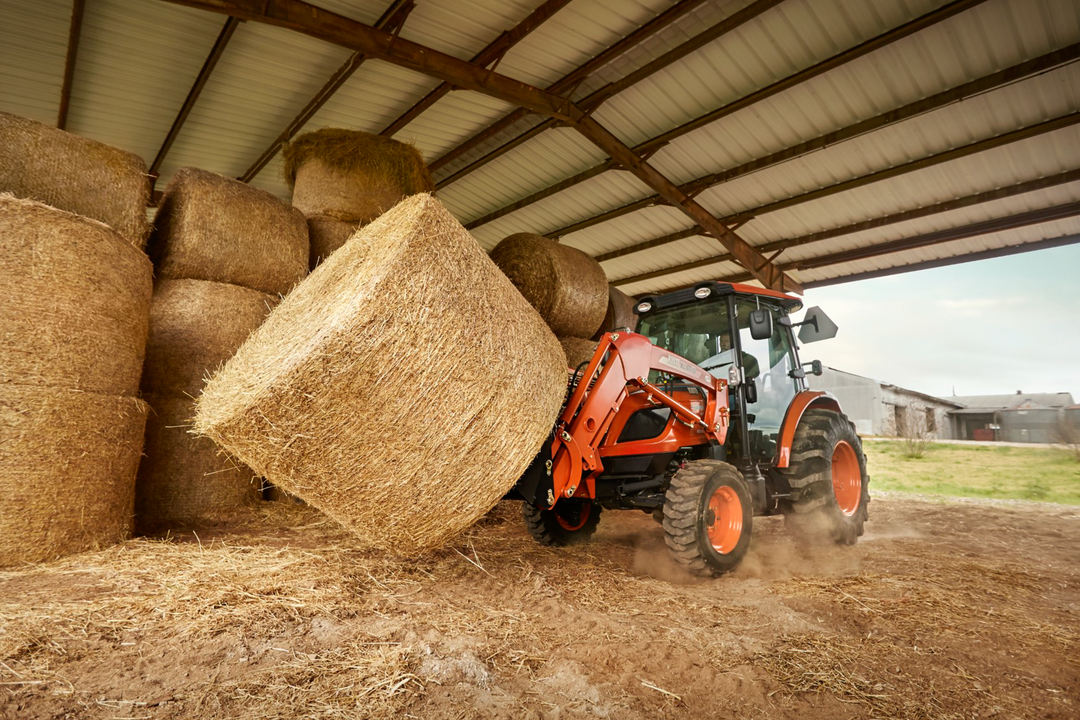

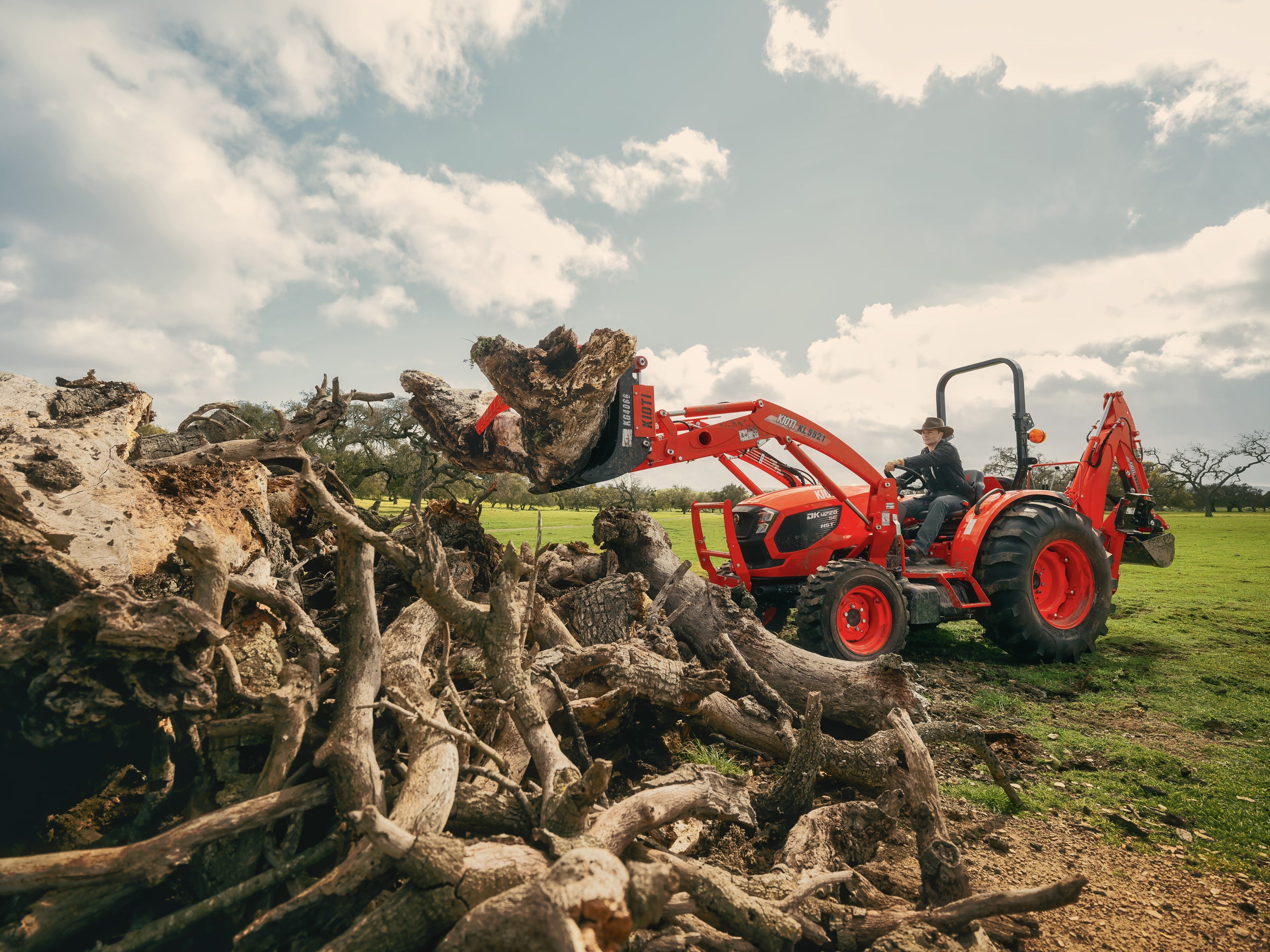

Front End Loaders

Built with better lift capacity and a greater lift height.

Dirt, gravel, manure, logs, bags of fertilizer, a giant stump, chicken feed, a pile of fence posts... it it's on your land and it needs to be scooped, lifted, pushed around or carried somewhere, a KIOTI front end loader will get it done.
