17CIGGY5A10

Regular price$9,399.00
/
  • Available To Order
  • Available To Order
  • Price does not include PDI, Factory Freight, or Accessories

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

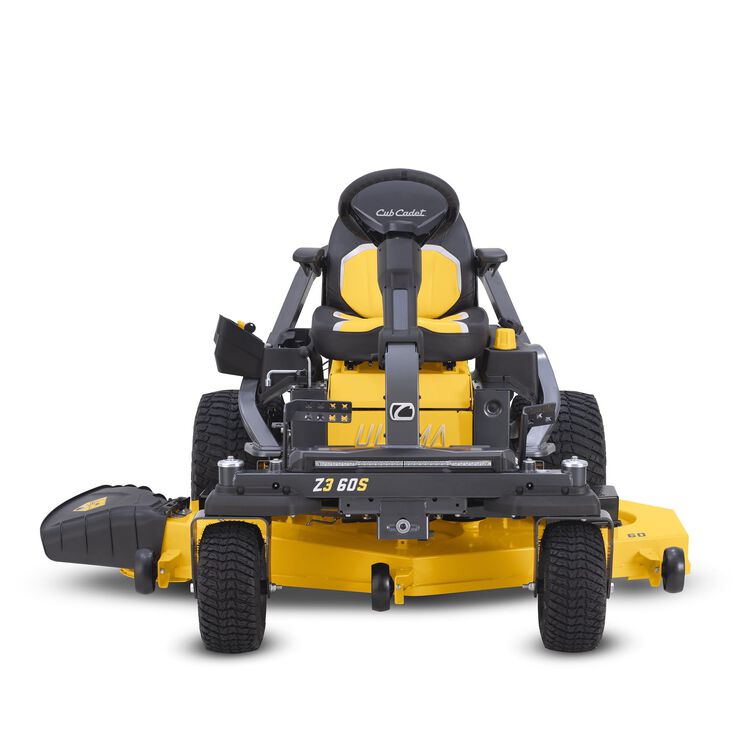

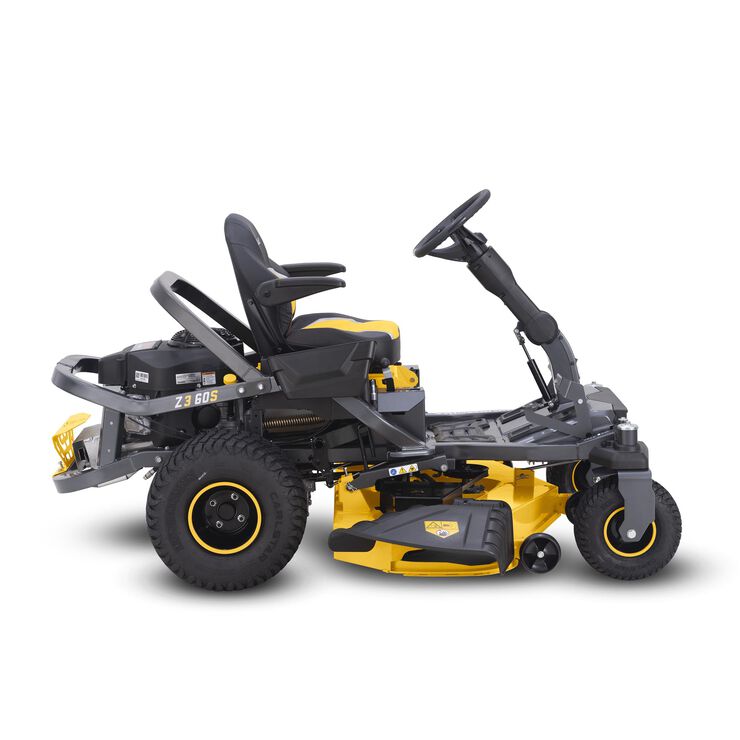

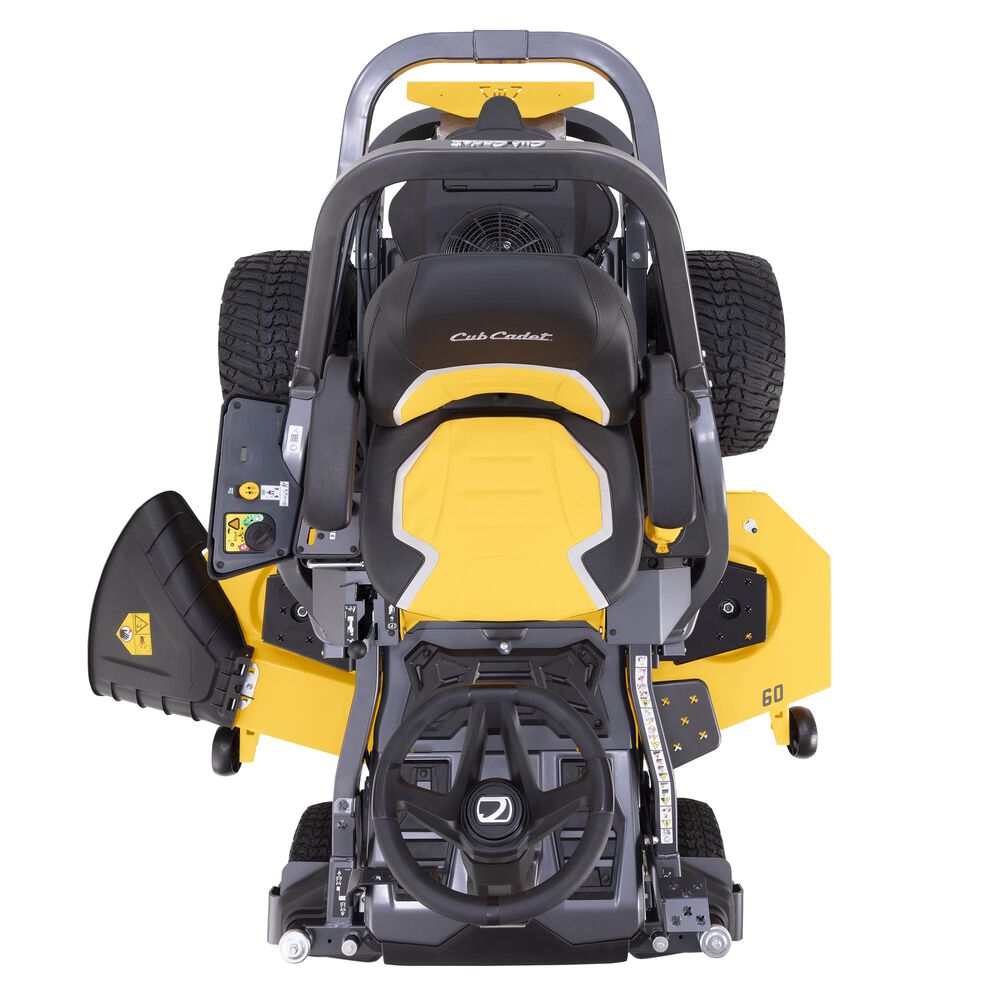

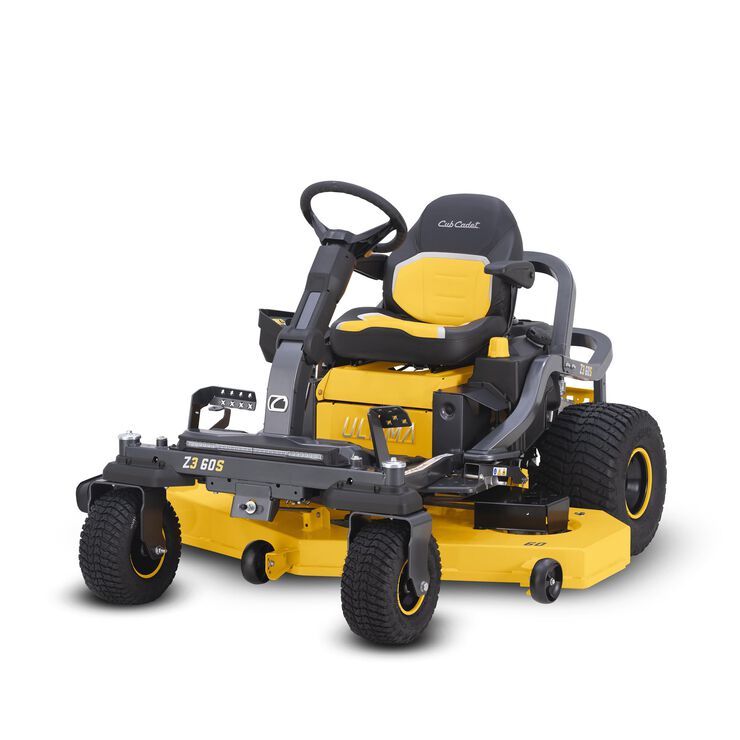

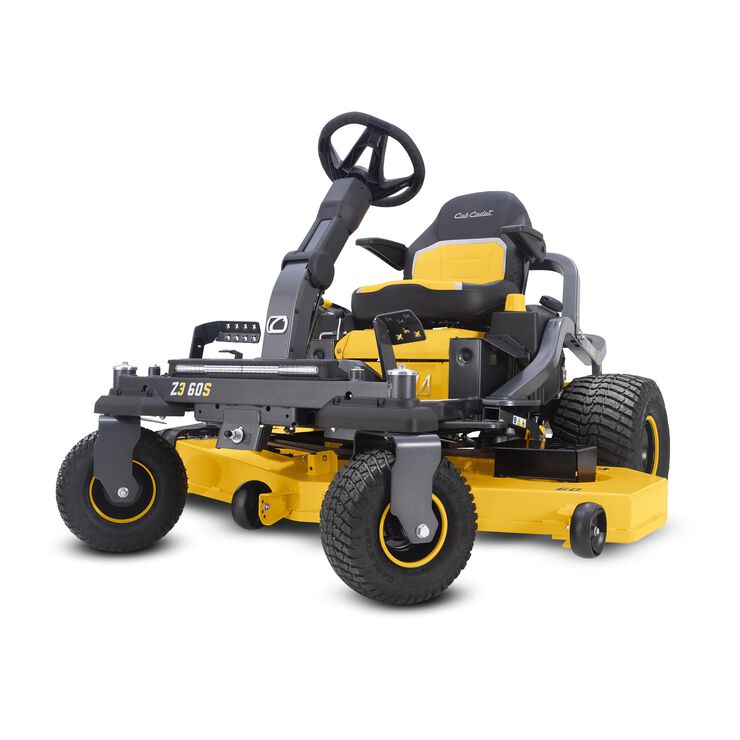

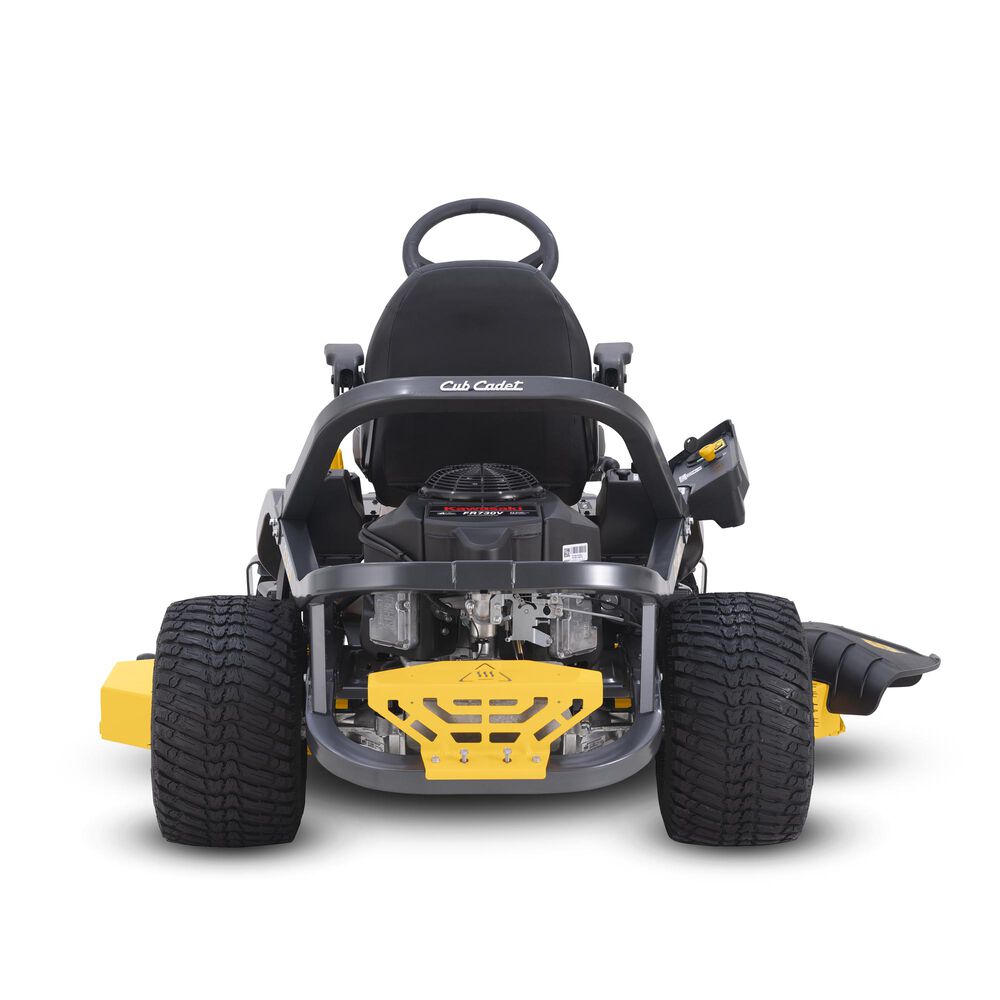

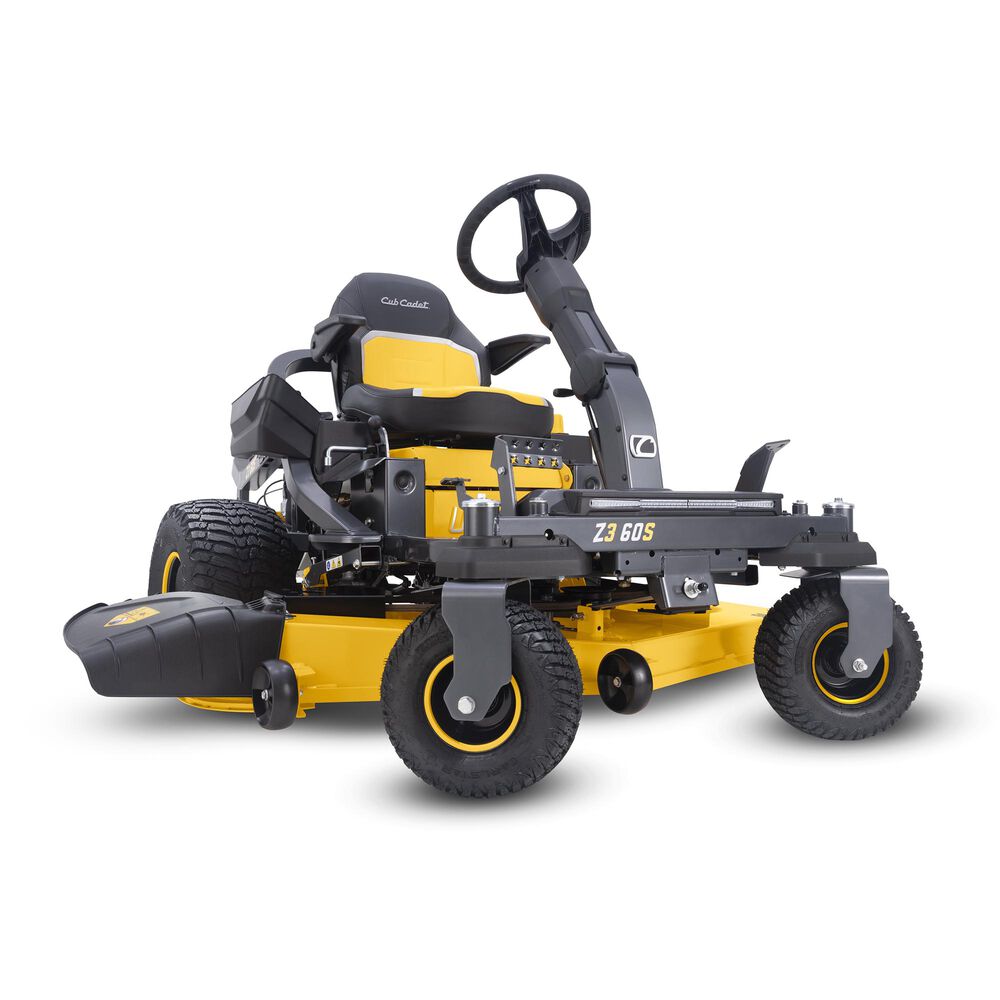

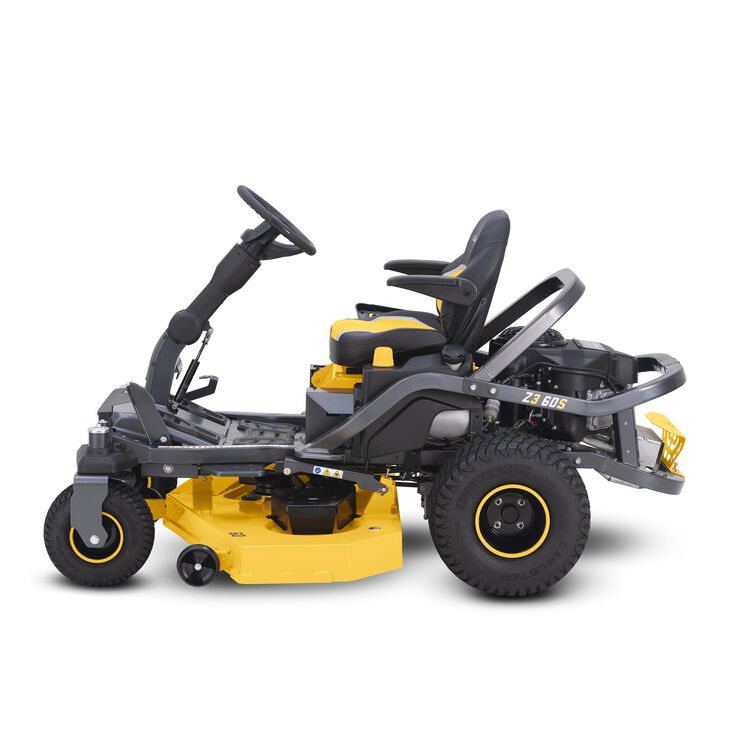

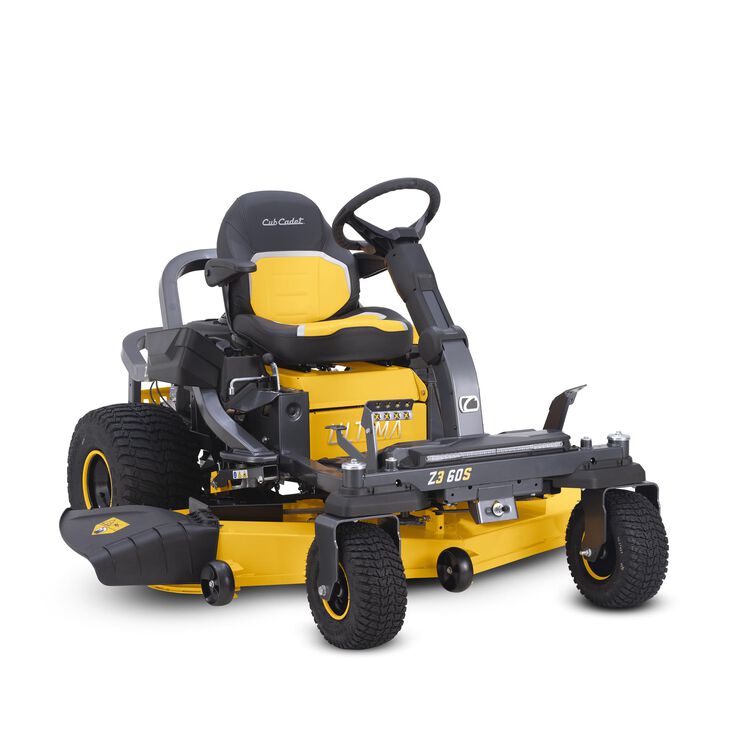

Step up to the advanced Ultima Series™, the Cub Cadet® Ultima Series Z3 60S 60-in. 24 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck and Synchro-Steer™ Technology is engineered for precision, control, and stability on challenging terrain. Don’t back down from hills and slopes up to 20-degrees**. Synchro-Steer™ technology offers 4-wheel control and provides stability for straight-line mowing on hillsides. Experience uncompromised performance and durable strength, designed to help you mow efficiently and maintain control.

  • Experience the ultimate in control even when facing slopes and hills up to 20-degrees with Cub Cadet® steering wheel zero-turns equipped with patented Synchro-Steer™ technology.

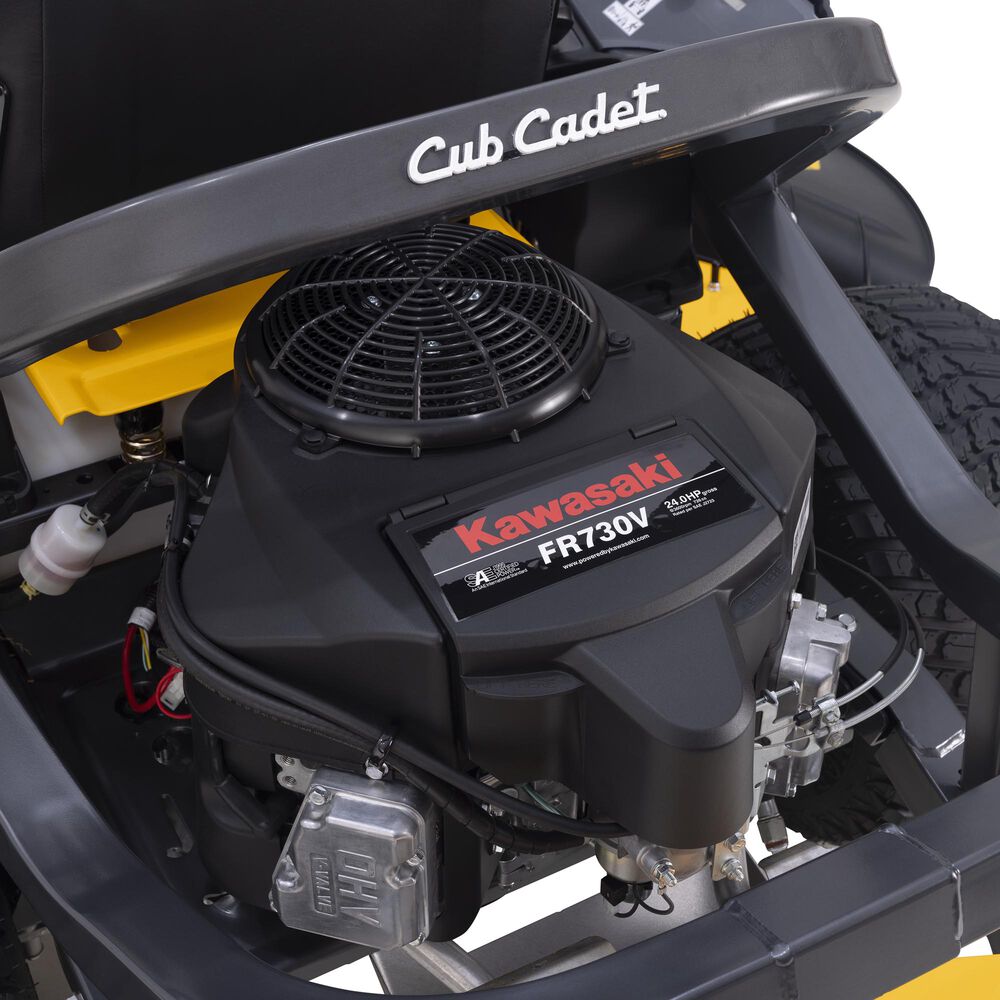

  • The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable Kawasaki® Engine. A 24 HP* Kawasaki® twin-cylinder OHV engine delivers high-performance to tackle your yard.

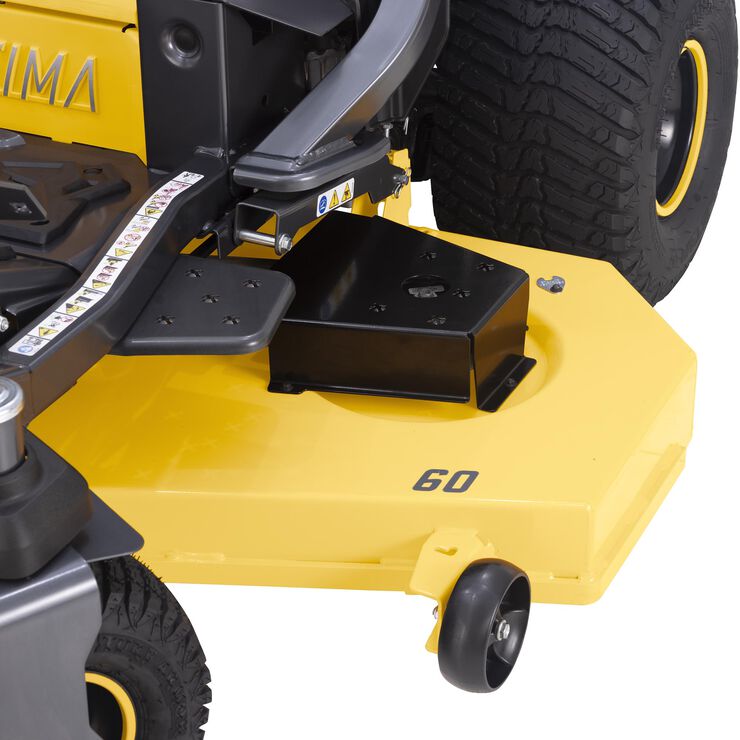

  • A 11-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
  • Protect against wear and tear while being the envy of your neighborhood with a continuous, 2x2 tubular steel frame designed to withstand heavy loads and provide stability on rough, uneven terrain.
Engine

Engine Brand Kawasaki®
Engine Model FR Series
Engine Model Number 730V
Engine Displacement 726cc
Engine Output 24HP
Starter Type Electric
Fuel Tank Capacity 3.5 gal. US (13.25 L)
Cylinders Twin
Engine Start Ignition Key
Engine Oil Capacity 2.1 qt US ( 2 L)
Lubrication Fully pressurized
Charging System 12 amp regulated
Fuel Gauge No
Governor Mechanical
Choke Separate Choke
Air Filter Single element
Oil Filter Yes
Fuel Delivery Carburetor

Battery

Battery 230 CCA
Battery Type Lead Acid
Battery Voltage 12V

Drive System

Transmission Hydro-Gear ZT 2800
Forward Speed 7 MPH / 11.3 km/h
Reverse Speed 3.5 MPH / 5.6 km/h
Drive System Hydrostatic
Serviceable Transmission Yes (Serviceable)

Cutting Deck

Deck Cutting Width 60 in
Deck Wash No
Deck Material 11-gauge steel
Deck Engagement (PTO) Electric
Deck Construction Reinforced Fabricated
Blade(s) Three
Deck Lift Foot Pedal with Dial Adjust
Cutting Height Range 1'' - 4.5''
Anti-Scalping Three gauge wheels
Deck Positions 15

Chassis

Frame 2'' x 2'' tubular steel
Turning Radius 0°
ROPS No
Rear Tow Hitch Yes
Corrosion Protection Yes
Front Caster Yokes 1/4" Steel

Controls

Cruise Control NA
Brakes Disc

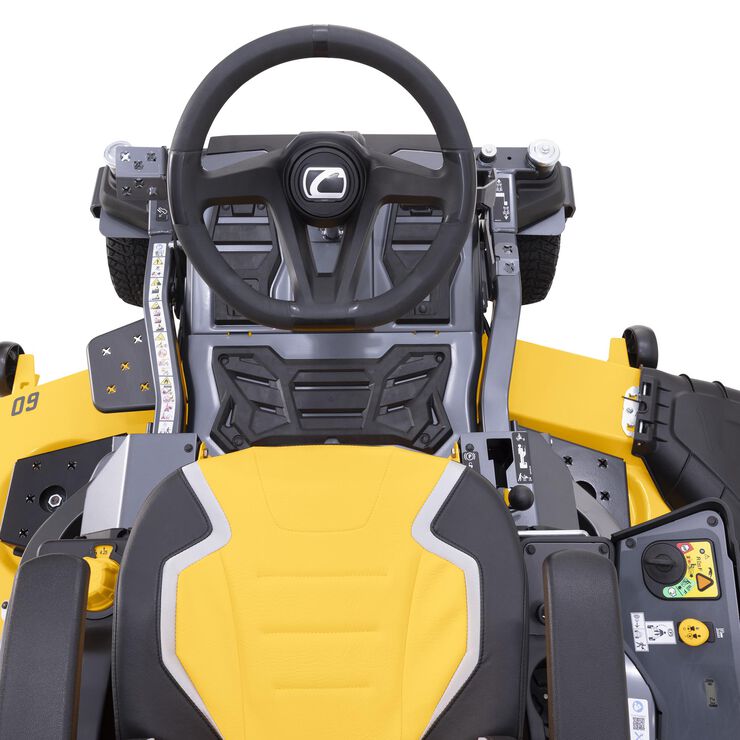

Steering Control Steering Wheel

Comfort

Armrests Yes
Seat Type 20" Cut-and-Sew with Head Bolster
Seat Suspension Lever
Front Caster Suspension No

Wheels

Rear Tires 20”x 12”-8"
Front Tires 13"x 6.5"-6"
Tire Tread Turf Armor

Additional Specifications

Series Ultima Series™ ZS
Hour Meter Yes
Mulch Kit Available separately

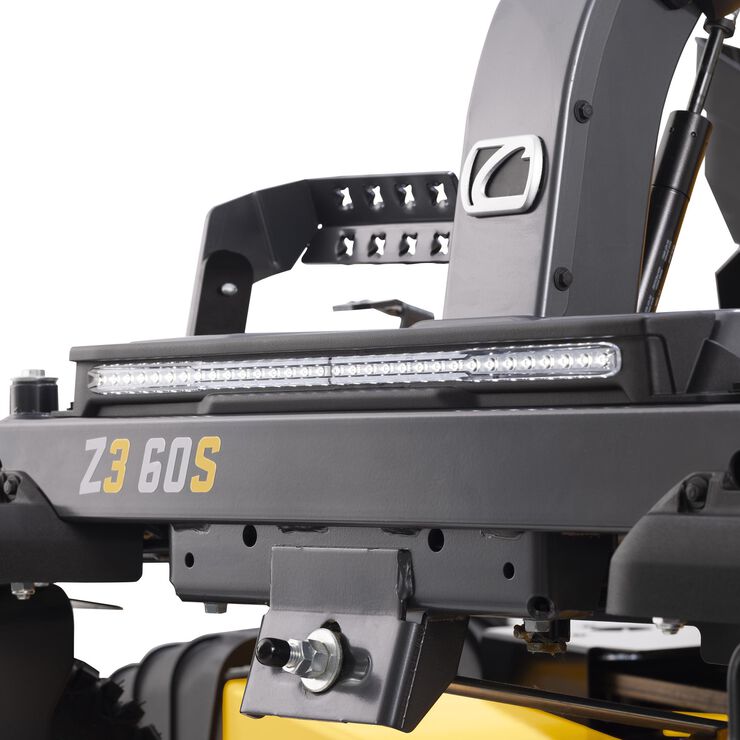

Headlight(s) Dual-LED
Cup Holder Yes
Operator Presence System Yes
Parking Brake Hand Lever
Model Number 17CIGGY5A10

Warranty

Residential Warranty 3-year unlimited hours
Frame Warranty Lifetime Limited
Deck Shell Warranty Lifetime limited
Commercial Warranty No

Disclaimers

Specifications
Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.

Horsepower
*As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International. Engine power ratings are as certified by the engine manufacturer. Actual operating power may vary. Refer to the engine manufacturer's website for additional information.
